Easily integrated metamaterials found to boost sensitivity of MRI machines

A group of researchers from Russia, Australia, and the Netherlands have developed a technology that can reduce Magnetic Resonance Imaging (MRI) scanning times by more than 50 percent, meaning hospitals can drastically increase the number of scans without changing equipment.

This extraordinary leap in efficiency is achieved by placing a layer of metamaterials onto the bed of the scanner, which improves the signal-to-noise ratio.

The details of this experimental research are available in the Jan. 11, 2016, issue of Advanced Materials. This patent-pending technology is currently being co-developed by MediWise, a UK-based company that specializes in commercializing metamaterials for medical applications. Metamaterials are often described as engineered materials with properties not found in nature.

MRI is one of the key methods of modern diagnostics that have found wide applications in medicine, biology, and neurology. MRI scanning helps monitor the subtlest of physiological changes in our internal organs. For instance, a timely MRI procedure can detect tissues affected by cancer in the earliest stage of the disease. The possibility of effective MRI diagnostics, however, depends almost entirely on the quality of resulting MRI images.

Scientists from ITMO University, Australian National University, Ioffe Physical-Technical Institute, University Medical Center Utrecht, and Institute of Experimental Medicine RAMS demonstrated that the quality of MRI images could be substantially increased with the aid of metamaterials -- in this case, artificial periodic structures that can interact with electromagnetic radiation in an extraordinary fashion.

"This is the first real demonstration of the practical potential of metamaterials for MRI imaging enhancement and scanning time reduction. Our research may evolve into new healthcare applications and commercial products," says Yuri Kivshar coauthor of the study, head of the Nonlinear Physics Centre at the Australian National University.

By placing a specially designed metamaterial under the studied object in an MRI scanner, it is possible to increase the signal-to-noise ratio in the scanned area. The result of this increase is that either a higher resolution image can be obtained over the same time slot or faster examination can be performed with the same resolution as in an ordinary MRI scanner. In addition, the metamaterial suppresses the electric field, which is responsible for tissue heating -- a phenomenon that may compromise the safety of the whole MRI procedure.

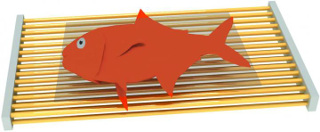

This is an artist's view of a biological object placed on a metasurface resonator.





The problem of tissue heating has recently become even more relevant with the arrival of high-field and ultra-high-field MRI scanners in the medical practice. A drive for high-field MRI is mediated by the benefits of better image resolution. However, tissue heating becomes substantial at higher fields due to an increase of the radiofrequency energy absorption. Therefore, the issue of safety in high-field and ultra-high-field MRI scanners remains open.

The scientific group managed to entirely avoid tissue heating, at the same time preserving high resolution. The solution, in essence, does not require any intervention into the hardware of the MRI scanner, but rather represents an inexpensive functional add-on device that can be used with any existing MRI scanner.

"Our metamaterial can be embedded directly into the patient table of any commercially available MRI scanner. However, in the future we see even more potential in the concept of special smart clothing for MRI scanning," says Alexey Slobozhanyuk, first author of the study and researcher at the International Laboratory of Applied Radiophysics at ITMO University. "Stripes of our metamaterial can be sewn in the clothes. The examination of patients, wearing such clothes, would lead to higher resolution MRI images, while the special design will enable a homogeneous enhancement of the signal-to-noise ratio, which does not pose any risk to the patients' health. As a result, with metamaterials you will be able to improve the characteristics of low-field MRI to the extent that their functionality is comparable to high-field MRI."

The duration of an MRI exam also presumes inconveniences for patients. In ordinary MRI devices, the scanning may last from 15 to 60 minutes, and during this time the patient must remain completely immobile. The possibility of achieving detailed images in a shorter time slot will make the procedure more comfortable for the patient and in the long view could even reduce queue time in hospitals.

"Metamaterials have been proven to add value through their ability to process electromagnetic and sound waves in ways that no natural material can do," says George Palikaras, Mediwise's founder and CEO. "This leads to emerging business opportunities creating genuinely disruptive products. The scientific field of metamaterials is rapidly evolving and impacting traditional industries such as aerospace, telecoms, cleantech, and now healthcare."

You can download a PDF of the research article here.

Sources: ITMO University, Advanced Materials

Published February 2016
